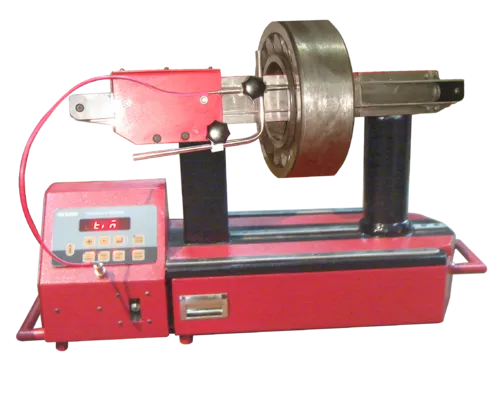

Induction Heater Model UIH-2003 FLAIR

Power 10.5/11 KVA

Brand Unitech

Voltage 440 V

Country of Origin Made in India

Bearing Weight 300 Kg

Power Control 25 to 100 %

Temperature Control 0 -250 Deg C

Accuracy Temperature +/- 30 Deg C

Time Control 0.99 min

Overall Dimensions 850x330x450 mm

Space Between Supports 255 x 255 mm

Weight 75 Kg

Weight with Standard Yokes 90 Kg

Model Name/Number UIH-2003 FLAIR

Bearing Diameter 60 to 650 mm

UIH-2003 FLAIR Induction Heater offered can be provided by us in multiple power/frequency combinations o as to provide for best working match in particular processes, Further, the advanced circuit support also minimizes the possibilities of shutdowns and restarts that can be time consuming. Some of its features include superior output regulation by voltage, power or current; factory calibrated control board, modular, single-layer design, pressure switches on all capacitors, built-in annunciator panel for simplified status, water cooled, solid state power supplies for annealing, mass heating, case hardening, through hardening and other applications.

Features:

Multiple power/frequency combinations for application matched performance

Bullet-Proof" circuitry eliminates nuisance shutdowns and restarts

Product Data/Models UIH-2003 FLAIR UIH-2002 FLAIR UIH-2001 FLAIR UIH-2000 FLAIR

Diameter (mm) Bearing 60 to 650 20 to 550 20 to 400 20 to 300

Bearing Weight 300 Kg 125 Kg 105 Kg 40 Kg

Power 10.5/11 KVA 6.0/ 8.0 KVA 3.6/ 4.6 KVA 2.0/ 2.6 KVA

Voltage 440V 440V 230V 230V

Power Control 25%, 50%, 25%, 50%, 25%, 50%, 25%, 50%,

75%, 100% 75%, 100% 75%, 100% 75%, 100%

Temperature Control (Range) 0 -250°C 0 -250°C 0 -250°C 0 -250°C

Maximum Temperature 400°C 400°C 400°C 400°C

Accuracy Temperature ± 30°C ±30°C ± 30°C ± 30°C

Time – Control 0.99 Minutes 0.99 Minutes 0.99 Minutes 0.99 Minutes

Residual Magnetism <2A/cm <2A/cm <2A/cm <2A/cm

Overall dimensions (wxdxh) (mm) 850x330x450 690x265x390 690x265x360 300x260x250

Space between supports (wxh) (mm) 255×255 200×245 160×215 100×130

Weight (Main that) 75 Kg 54 Kg 42 Kg 19 Kg

Weight with Standard Yokes 90 Kg 68 Kg 52 Kg 22 Kg

Horizontal Yoke Sizes (mm) 70X70X450 60X60X350 56X56X300 14x14x220

40x40x450 28x28x350 28228×300 20x20x220

30x30x450 20x20x350 20x20x300 10x10x220

40x40x450 30x30x350 30x30x20 18x18x220

50x50x450 40x40x350 40x40x300 30x30x220

60x60x450 50x50x350 50x50x300 40x40x220
