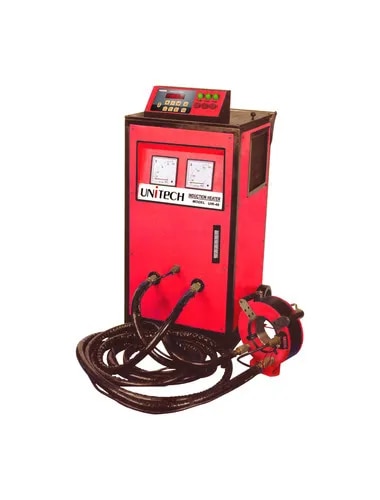

Electric Induction Heater Model UIR-40

Power 40 KVA

Brand Unitech

Voltage 440V

Country of Origin Made in India

Model Name/Number UIR-40

Phase Three Phase

Nominal Current 90A

Output Voltage 40-60V

Output Current 800A

Time Control 0-3 min

Temperature Control 0-200 Deg C

Accuracy Temperature +5 Deg C

UIR-40 Electric Induction Heater is specially designed to cater the need of dismounting and mounting of the inner races of cylindrical roller bearing used on the axles of railway rolling stock and in traction motors. It can be used in other industries with similar applications.

Advantages:

Induction heating is more safe, reliable and clean process

Even unskilled can be trained to operate the equipment easily

High heating rates can be easily achieved

Precise temperature and time control are achieved through state of the art technology used in heaters

Lower cost & high efficiency are the plus points of industion heating

Product Data/Model UIR-25 UIR-40 UIR-60

Power 25 KVA 40 KVA 60 KVA

Supply Voltage 3x440V 3x440V 3x440V

Nominal Current 57A 90A 136A

Output Voltage 40-60V 40-60V 40-60V

Output Current 500A 800A 1200A

Power Control 25%, 50% 25%, 50% 25%, 50%

75%, 100% 75%, 100% 75%, 100%

Temperature Control 0-200ºC 0-200ºC 0-200ºC

Accuracy +5ºC +5ºC +5ºC

Temperature

Time Control 0-3 min 0-3 min 0-3 min

Residual Magnetism <2A/Cm <2A/Cm <2A/Cm
