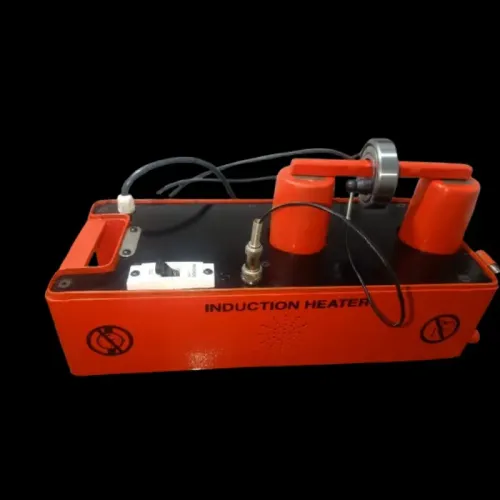

A bearing induction heater is a specialized device that uses electromagnetic induction to heat bearings and similar metal components for precise installation or removal in industrial settings. By causing uniform thermal expansion, it enables practical, damage-free fitting or dismounting of bearings on shafts, thus minimizing the risks of cracks, contamination, and inefficient installation.
How it works :
Induction bearing heaters operate on Faraday’s Law, where a changing magnetic field induces an electric current in the bearing, efficiently heating it from within.
Dual temperature probes often monitor the inner and outer races, ensuring uniform heating and preventing structural stress or fractures.
Modern units include safety mechanisms like automatic temperature control, fail-safe demagnetization, and timed heating modes for consist.
Features:
Flawless design to handle high temperature and demagnetization
The High durability due to following approved industry standards
The Elevated endurance, low maintenance and energy efficient
Product Details:
Power 6.0/ 8.0 KVA,
Brand: Unitech
Voltage: 415 V
Colour: Red And Black
Accuracy Temperature: +/- 30 Deg C
Power Control: 25 to 100 %
Weight with Standard Yokes: 68 Kg
Bearing Diameter: 20 to 550 mm
Model: Name/Number UIH-2002
Bearing Weight: 125 Kg
Space Between Supports : 200 x 245 mm
Overall Dimensions: 690 x 265 x 390 mm
Temperature Control: 0 -250 Deg C
Country of Origin : Made in India
How it works :
Induction bearing heaters operate on Faraday’s Law, where a changing magnetic field induces an electric current in the bearing, efficiently heating it from within.
Dual temperature probes often monitor the inner and outer races, ensuring uniform heating and preventing structural stress or fractures.
Modern units include safety mechanisms like automatic temperature control, fail-safe demagnetization, and timed heating modes for consist.
Features:
Flawless design to handle high temperature and demagnetization
The High durability due to following approved industry standards
The Elevated endurance, low maintenance and energy efficient
Product Details:
Power 6.0/ 8.0 KVA,
Brand: Unitech
Voltage: 415 V
Colour: Red And Black
Accuracy Temperature: +/- 30 Deg C
Power Control: 25 to 100 %
Weight with Standard Yokes: 68 Kg
Bearing Diameter: 20 to 550 mm
Model: Name/Number UIH-2002
Bearing Weight: 125 Kg
Space Between Supports : 200 x 245 mm
Overall Dimensions: 690 x 265 x 390 mm
Temperature Control: 0 -250 Deg C
Country of Origin : Made in India
